Plastic Insulated Steel-tape Armored Power Cable
|
Type： |
YJV22、VV22 |
|
Main Specification： |
Number of Cores： 3+1Cores Main-core Cross-section：95mm²、120mm²、150mm²、185mm²、240mm²、300mm² Vice-core Cross-section：35mm²、50mm²、70mm²、95mm²、、120mm²、150mm²、185mm²、240mm² |
|
Rated Voltage： |
0.6kV/1kV |
|
Standard： |
Standard: GB/T 12706 Rated Voltage 1kV(Um=1.2kV) to 35kV(Um=40.5kV) Extruded Insulation Power Cable and Accessories |
|
Products Introduction： |
Apply to power transmission system with AC rated voltage up to and including 600/1000V，the connection between wind power generation switch cabinet and box-type transformer which require the performance of flexibility, bending, bearing great external mechanical forces, weather proof, anti-UV, anti-Ozone, anti-oil, cold-resistance and flame retardant. |
|

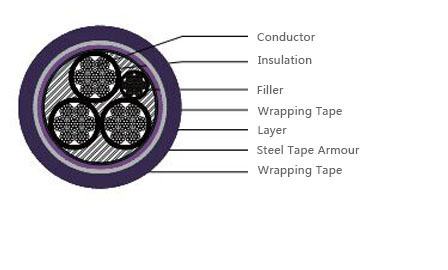

Cable Structure Drawing：
5Cores |
|
